AlterLock CycleGuardService

User Manual

Contents

If you’re using a first generation AlterLock device, refer to this manual.


01.Introduction

The operation of the AlterLock device and the AlterLock app are subject to change as features are updated.
The content of this setup guide is also subject to change without notice.

This product has been designed with safety in mind. However, improper use of the product is dangerous as it may result in fire or injury. To prevent accidents, be sure to observe the following:

  • Don’t disassemble or modify this product.
  • Don’t subject this product to direct impact.
  • Don’t charge, store, or leave this product near a fire or in an extremely hot place.
  • Don’t drop this product in water or charge it while it’s wet.
  • Discontinue use if you feel something is abnormal.
  • Don’t use this product near equipment that may cause serious injury.
  • Keep out of the reach of small children.
  • A separate service charge is payable for the use of this product.
  • This product does not guarantee your bike won’t be stolen. To increase the effectiveness of this product against theft, we recommend you to use it with a locking device.
  • Repeatedly activating the alarm to confirm your bike is still where you left it may disturb others. We recommend you use the device within your immediate vicinity.
  • If the battery in your smartphone becomes exhausted, you won’t be able to change the settings or clear the alarm.
  • It may not be possible to attach the bottle cage to your bicycle if there are no mounting bosses for the bottle cage or if your bicycle frame has a special shape.
  • If the mounting surface of the bottle cage interferes with the plastic part of the device, the device may be damaged. It is recommended to use a non-interfering bottle cage or to use a separate spacer between the device and the cage.
  • This product uses a lithium polymer rechargeable battery.
  • Do not store the battery when it’s fully charged or when it’s exhausted. Doing so may reduce the performance and life of the battery.
  • The battery cannot be replaced.
  • When disposing of this product, do so according to the local regulations governing disposal.
  • This product uses Sigfox to send notifications and location information over the Internet from anywhere within the Sigfox service area. It may not be able to communicate outside of Sigfox service area or in an environment with poor signal conditions, such as indoors.
  • Sigfox is subject to the technical standards of each country it operates in, and communication conditions vary depending on the area. The European version is available in the following countries: Belgium, Croatia, Czech Republic, Denmark, Finland, France, Germany, Hungary, Ireland, Italy, Luxembourg, Netherlands, Portugal, Slovakia, Spain, and United Kingdom.
  • This product uses Bluetooth for various settings and short-range communication. Because of the characteristics of Bluetooth, the distance over which a stable connection is possible may change depending on the surrounding environment.
  • This product uses GPS and Wi-Fi to acquire location information. If signals from GPS satellites cannot be received and there’s no appropriate Wi-Fi signal in the vicinity, it may not be possible to obtain location information or the location error may be large.
  • Communication performance may be degraded if a metal bottle, tools, or a bottle containing water is placed in the bottle cage under which this product is installed.

02.Package Items

The device comes with the following:

  1. The device comes with the following:
  2. USB cap
  3. 2 mounting bolts
  4. Start Guide / Important matter
  5. Stickers

Note 1: To charge the device, obtain a USB Type-C charging cable separately.
Note 2: To tighten the supplied mounting bolts, obtain a 3-mm Allen key (hex wrench) separately.


03. Charging the device

At the time of purchase, the battery is not fully charged. Be sure to charge it before using the device.
You can charge the device with any USB Type-C cable already in your possession. While charging, the LED lights in red, and when charging is complete, the LED goes blue.

When charging with a mobile battery, the LED may go out once charging is complete.


04. Installing the device

Align the device’s mounting bolt holes with the bottle cage bosses of your bike. The device will be more discreet if it’s installed together with a bottle cage.
Before installing the product with a bottle cage, thread the mounting bolts into the bottle cage and the device. This makes installation easier.

Use the standard bottle cage tightening torque (less than 2 N-m) to prevent damage to the product and the bottle cage.
If the mounting surface of the bottle cage interferes with the plastic part of the device, the device may be damaged. It is recommended to use a non-interfering bottle cage or to use a separate spacer between the device and the cage.


05. Installation of the application

You can download the app for iOS and Android free of charge using the links below.

Download on the AppStore GET IT ON Google Play

You can download the app for iOS and Android free of charge using the links below.
For the best possible experience, always upgrade to the latest app.

Launch the app and log in with your pre-registered account.

When you start the app or log in, you will be asked for multiple permissions, please select "Allow" for all of them.
*On Android, location permission is required for the app to use Bluetooth.
Please select "Only when using the app" or "Allow".


06. Smartphone settings

The AlterLock app uses some of your smartphone’s features (such as Bluetooth). Be sure to make the following settings first:

Setting up iOS

  1. Tap Settings on the Home screen to open the Settings screen.
  2. Tap Bluetooth.

  3. If Bluetooth is off, turn it on.
  4. Return to the settings screen and tap Privacy.
  5. Tap Location Services.
  6. If location services are off, turn them on.

Setting up Android

Note: For Android, the procedure may vary depending on the smartphone model and OS version.

  1. Swipe down from the top of the screen and tap the Settings icon in the upper right corner.
  2. Open Location in the settings list and turn location information on if it’s off.
  3. Tap Wi-Fi and Bluetooth scanning or Location Detection Method > High Accuracy.
  4. If Bluetooth scanning is on, turn it off.
  5. Swipe down from the top of the screen again to turn Bluetooth on if it’s off.

07. User registration

To use the app or device, you need to register as a user.

  1. Open this page in your web browser, fill in the fields and tap "Register".
  2. After a while, you’ll receive an email at your registered email address. Open it and complete the registration process.

To register from the app, tap Create an account after launching the app and follow the instructions on the screen.


08. Service subscription

To use your AlterLock device, you’ll need to sign up for the Bicycle Guard service.
To do that, access this page in your browser, check the service area and compatible smartphones, and then tap Service Agreement to complete the procedure.

Note: If you have a coupon code, be sure to enter it at this time. You cannot enter the coupon code after you’ve signed up.


09. Register your bike information

  1. On the main screen, tap Register bike.
  2. Enter the bike information as shown on the screen, then tap Register.

Note: You can edit your bike information at any time. In the event of theft, you’ll need the serial number and theft registration number to report the theft to the police and identify the bike.
Note: The photo of your bike is displayed in the 16:9 aspect ratio of the main screen. For other ratios, black bars appear at the top and bottom. If you create a 16:9 photo in advance, it will be displayed perfectly.

10. Editing Bike Information

  1. On the main screen, select the Info tab, and then tap Bike Information.
  2. When the Bike Information edit screen appears, edit the information and tap Save.

Deleting Bike Information

  1. On the main screen, select the Info tab, and then tap Bike Information.
  2. When the Edit Bike Info screen appears, scroll to the end and tap Delete this bike information.

Be aware that once you delete the bike information, you cannot restore it.

Switching bike information

If you’ve already subscribed to the CycleGuard service, you can register information for up to three bikes.
You can also switch between the registered bikes and register and operate the AlterLock device for each one.

To switch the bike information, swipe left or right on the photo of your bike on the main screen.


10. Device Registration (iOS)

  1. Be sure you have your AlterLock device and Start Guide to hand.
  2. Note: You’ll need the Authorization Code in the Start Guide to re-register your device should you lose connection with it for any reason. We recommend that you take a photo with your smartphone and save it.

  3. On the main screen, select the Control tab and tap Register Device.
  4. In STEP 1, select the device to be registered.
  5. In STEP 2, enter the authentication code and tap Next.
  6. In STEP 3, briefly press the button on the device, then tap Start. The LED blinks in blue for 3 seconds when pairing starts.
  7. When the Bluetooth Pairing Request screen appears, enter the authentication code and tap Pairing.
  8. If the pairing is successful, the message “AlterLock device registration has been completed” is displayed. Note: If the pairing isn’t successful, check that the device is sufficiently charged and carry out the procedure again from the beginning.

Note: You must complete the pairing within 60 seconds of pressing the button on the device.


11. Device Registration (Android)

  1. Be sure you have your AlterLock device and Start Guide to hand.
  2. Note: You’ll need the Authorization Code in the Start Guide to re-register your device should you lose connection with it for any reason. We recommend that you take a photo with your smartphone and save it.

  3. On the main screen, select the Control tab and tap Register Device.
  4. In STEP 1, select the device to be registered.
  5. In STEP 2, enter the authentication code and tap Next.
  6. In STEP 3, briefly press the button on the device, then tap Start. The LED blinks in blue for 3 seconds when pairing starts.
  7. When the Pair Setup Request screen appears, enter the authentication code and tap OK.
    Note: If the Pair Setup Request screen does not appear, check the notification area.
  8. If the pairing is successful, the message “AlterLock device registration has been completed” is displayed.
    Note: If the pairing isn’t successful, check that the device is sufficiently charged and carry out the procedure again from the beginning.

Note: You must complete the pairing within 60 seconds of pressing the button on the device.

For Android 10 and above

After registering your device for the first time, you will be prompted with the message "Allow background connection".
Tap "Open settings" to go to the "Location permissions" screen and select "Always allow".

*On Android, location permission is required for the app to use Bluetooth.
This setting increases convenience by allowing devices to connect automatically even when the app is hidden.

If you want to change the settings later, please go to the Android "Settings" app and go to "Apps & Notifications" - "Show all apps" - "AlterLock" - "Permissions" - "Location".


12. Operating the device

Operation using the app

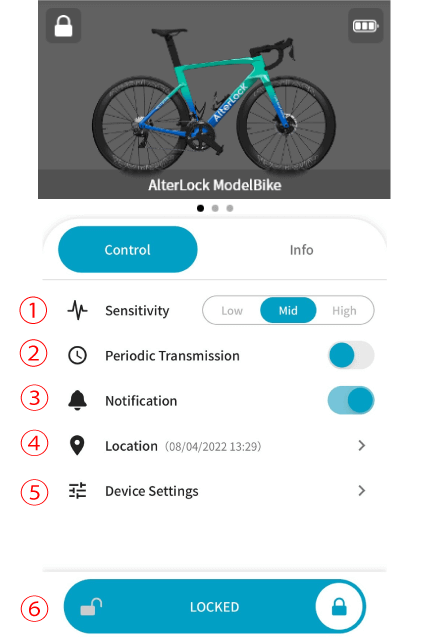

On the main screen’s Control tab, you can do the following:

  1. Adjust the sensitivity (1: Low; 2: Medium; 3: High)
  2. Periodic transmission on/off: Periodically obtain location information even when no movement is detected.
  3. Notification on/off: Turn smartphone notifications on or off.
  4. Location: Display a map showing your location.
  5. Device Settings: Configure advanced settings for the device.
  6. Lock mode change panel

Note 1: The device can only be operated while connected via Bluetooth.
Note 2: The alarm activation time and frequency limits, regular transmission interval, and other settings can be set in Device Settings.
Note 3: Regular transmission tends to drain the battery, so we recommend that you do not use it all the time.

Operation using the device

If the AlterLock device and the smartphone are within a few meters of each other while connected by Bluetooth, briefly pressing the button on the device turns Lock mode on or off.

From the advanced settings, the "Adjust" button allows you to re-set the sensitivity of the switch.

The button on the device can be used if Bluetooth reconnection with the smartphone is automatic. This means it can be used with the iPhone and most Android models unless the smartphone’s settings and power saving features prevent reconnection.

Reboot the device

If the device does not reconnect with the smartphone or is not working properly, you can restart it by pressing and holding the switch for more than 10 seconds.
There is no security issue as the lock status and settings will be maintained after a reboot.


13. Device operation check

After registering the AlterLock device, make sure the movement detection alarm and notification features are working.

  1. With the device nearby, go to the main screen and tap Unlock.
  2. The lock status display changes to Lock and movement detection is enabled.
  3. When the device detects movement, an alarm sounds.
  4. The initial alarm is set to a relatively quiet warning sound. Be aware that if the device senses movement again after a few seconds, the alarm sounds at maximum volume.
    Note: To set the initial alarm to maximum volume or to change how long the alarm sounds for, go to Device Settings.

  5. Confirm that you want to receive notifications on your smartphone.
  6. The alarm stops if you tap Misdetection or the alarm times out since a notification is displayed on the main screen.

Note 1: After Lock mode is turned on, the initial alarm won’t acquire location information for quicker notification.
Note 2: It may take up to two minutes depending on the reception status of GPS satellites.
Note 3: By default, the alarm won’t sound even if a fourth and subsequent movements are detected while the device is in Lock mode. By default, the alarm won’t sound even after a fourth and subsequent movements are detected while the device is in Lock mode, because we think it’s better to track the location only rather than continuously sounding the alarm. You can change this setting in Device Settings.


14. Advanced Device Settings

You’ll find more information about the advanced settings of the AlterLock device here.

Release the device

You should deactivate the AlterLock device in the following cases:

  • When you no longer intend to use the device.
  • When using a different smartphone
  • If you’re unable to reconnect or operate the device
  1. On the main screen, select the Control tab and tap Device Settings.
  2. Scroll to the end of the device settings screen and tap Release or Force Release.
  3. For iOS, open Settings > Bluetooth on the Home screen, select AlterLock if it appears, and tap Forget This Device.

15.Estimated battery life

The approximate operating time of the device in each state from full charge is as follows

ConditionOperating hours
Unlock45 days
Lock35 days
Unlock + Periodic transmission (60 minutes)7-15 days
Lock + Periodic transmission (60 minutes)6-14 days
Unlock + Periodic transmission (180 minutes)16-28 days
Lock + Periodic transmission (180 minutes)15-25 days

*The above figures show the operating time during Bluetooth connection. If the Bluetooth connection time is short, the uptime will be slightly longer than this.

*The battery is designed to operate over a wide temperature range, but conditions below 0°C or above 45°C may reduce battery life or cause damage.

*It consumes a lot of power when it is locating or sounding an alarm. The time taken to locate the device depends on the environment and therefore the operating time may vary significantly.

Tips to make your battery last longer

Do not store in extremely hot or cold environments.

Routine storage in direct sunlight, in a car during the summer months, prolonged storage in freezing cold conditions or repeated charging may damage the battery and reduce its operating time.

Periodic transmissions should only be used when necessary

We recommend that you only turn it on when you need to ride, as periodic transmissions of location data and data transmissions consume battery power.

Deactivate the device if it will not be used for a long time

If you are not going to use the device for a long period of time, charge the battery for about an hour before storing it with the device deactivated. Storage with an empty battery may reduce the operating time.


16.About LED display

The relationship between the status and operation of the device and the LED indications is as follows

Operation / statusLED display
Press and hold the switch for 2 secondsThe LED (blue) will flash for 3 seconds and the pairing mode will be activated. 60 seconds later it will return to the previous state.
During chargingThe LED (red) lights up.
Charging completeThe LED (blue) lights up.
Alarm sounding/ positioning/ communication in progress The LED (blue) flashes.

If you have any questions, check the "FAQ" and contact us if you still need help.
